FILTER PRESS

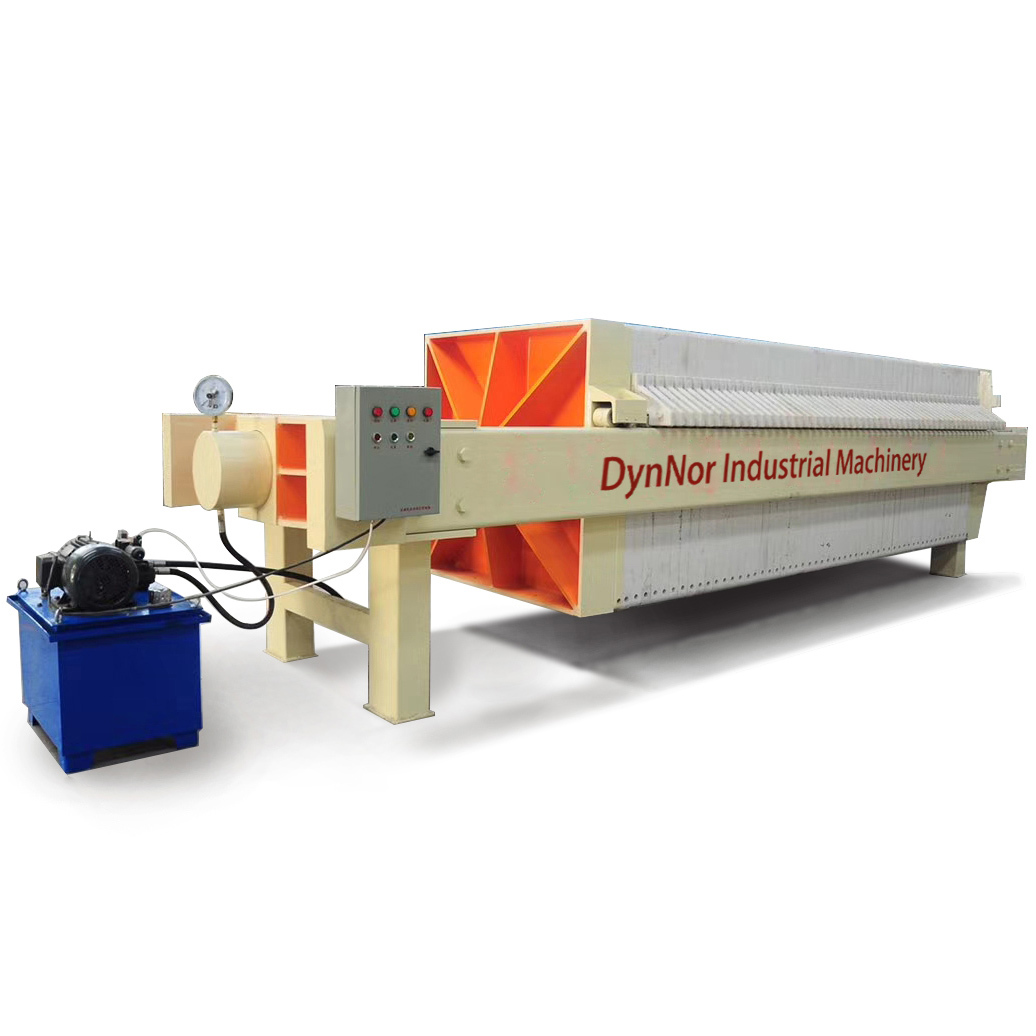

Auto Hydraulic Filter Press:
Automatic hydraulic plate closing and pressure maintaining, plates(filter cakes) has to be released manually. They are mainly for small capacities with limited plate number and sizes due to increasing labor cost and low efficiency.

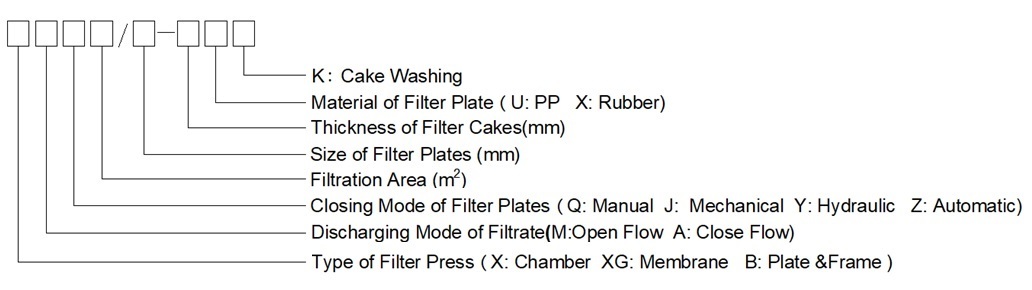

Code of Instructions:
Standard Models &Technical Data:
|
Model |
Filter area |
Plate size |
Cake thickness |
Chamber volume
|
Number of plates |
Filtration pressure |
Motor power |
Weight |

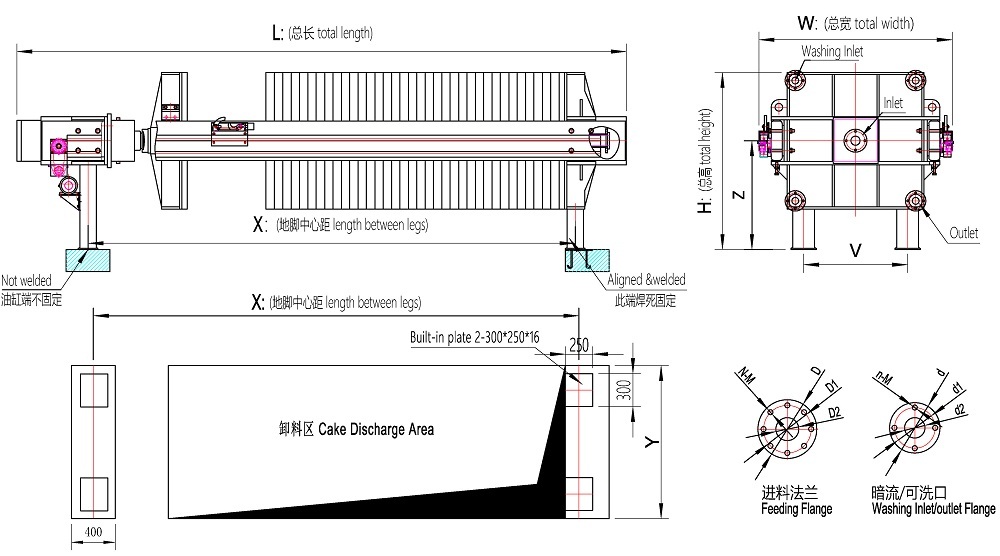

Overall dimension |
Foundation Size (mm) |
|||
|
X |
V |
Y |
Z |
||||||||||
|
XY4/500-30U |
4 |
500x500 |
30 |
60 |
9 |
>=0.6 |
2.2 |
860 |
1950x700x900 |
1450 |
390 |
700 |
560 |
|
XY6/500-30U |
6 |
91 |
14 |
910 |
2200x700x900 |
1700 |
|||||||
|
XY8/500-30U |
8 |
121 |
19 |
960 |
2450x700x900 |
1950 |
|||||||
|
XY10/500-30U |
10 |
151 |
24 |
1010 |
2700x700x900 |
2200 |
|||||||
|
XY12/500-30U |
12 |
182 |
29 |
1060 |
2950x700x900 |
2450 |
|||||||
|
XY15/500-30U |
15 |
225 |
36 |
1130 |
3300x700x900 |
2800 |
|||||||
|
XY16/500-30U |
16 |
243 |
39 |
1160 |
3450x700x900 |
2950 |
|||||||
|
XY15/700-30U |
15 |
700x700 |
30 |
226 |
18 |
>=0.6 |
2.2 |
1725 |
2640x900x1100 |
1972 |
560 |
910 |
700 |
|
XY20/700-30U |
20 |
297 |
24 |
1993 |
2940x900x1100 |
2272 |
|||||||
|
XY30/700-30U |
30 |
452 |
37 |
2360 |
3590x900x1100 |
2922 |
|||||||
|
XY40/700-30U |
40 |
595 |
49 |
2788 |
4300x900x1100 |
3622 |
|||||||
|
XY30/800-30U |
30 |
800x800 |
30 |
460 |
28 |
>=0.6 |
2.2 |
2170 |
3700x1200x1200 |
2880 |
600 |
900 |
780 |
|
XY40/800-30U |
40 |
595 |
38 |
2450 |
4300x1200x1200 |
3480 |
|||||||
|
XY50/800-30U |
50 |
749 |
47 |
2700 |
4840x1200x1200 |
4020 |
|||||||
|
XY60/800-30U |
60 |
902 |
57 |
2980 |
5440x1200x1200 |
4620 |
|||||||
|
XY70/800-30U |
70 |
1056 |
67 |
3250 |
6040x1200x1200 |
5220 |
|||||||
